Comfort-3 Eco

Slim and attractive design, less space needed,
Lower seat height for easier entry from front side
Recommended for short term treatment

The Comfort-3 product line features a new underframe structure that has been developed to meet the highest expectations of design combined with ease of the cleaning. The Eco chair is targeting the segments where the treatment time is shorter (up to 2 hours) and the easy entering and leaving the chair is important. The legrest can be lowered to 90 degrees enabling front entry, that is comfortable for elderly patients too. Its size enables to save at least 15%of useful floorspace in the clinic. As safety is first, all our models with seat tilting fully meet the standards of Trendelenburg position of 14°.

Fixed seat height 55 cm
Optional height adjustment range 55-70 cm
Backrest adjusting range 80° (-14° under horizontal in Trendelenburg position)
Seat tilt adjustment 14°
Legrest adjustment 90°
Dimensions in seat position L 99 x W 92.5 x H 139 cm
Size of upholstery L 195 x W 60 x H 9.5 cm
Armrest size L 57 x W 15 x H 6.5 cm
Size of castors 4 x Ø 7.5 cm twin wheel castors with total lock
Weight of chair 60 kg
Maximal load 200 kg weight capacity
Standard power supply 100-240 V AC, 50/60 Hz
Technical data of motors 24V DC, IPX6
Frame colour RAL 9001
Applied directive and standards 2017/745 (MDR) and harmonized standards

Adjustments

● Electronic adjustments

Multiple independent adjustment possibilities by 3 + 1 motors offer patient comfort, plus a reduction in work for staff.

  • backrest
  • seat tilt
  • legrest
  • height adjustment (optional)

Handset

Especially designed for medical applications:

  • Longlife micro-switches are located under an exchangeable keypad foil
  • Liquid proof housing with IP 67 protection
  • Easy-to-use 11 buttons handset

Dedicated grey buttons for each movement.

  • Yellow coloured buttons to set EntryBed positions by multimovement
  • The head-down "Trendelenburg" position can be reached easily from any previous one by using the red button

Entry position

Supporting the entry

By using this    button on the handset the chair can be brought to the upright (Entry) position automatically from any previous one. Thereby allowing the patient easily to enter or leave the chair.

Bed position

Perfectly horizontal Bed position

Especially designed construction ensures achieving perfectly horizontal Bed position for maximum patient comfort while passing through several relaxation positions.

By using this    button on handset the chair can be brought automatically into the BED position.

Trendelenburg Position

Real TRB

The backrest adjusting range ensures REAL Trendelenburg position in compliance with EN 60601-2-52:

"the entire mattress support platform shall be able to achieve a minimum of 12° so that the patient’s head is lower than the circulatory centre point of the body."

There are two ways of reaching Trendelenburg position by using the red buttons:

  • on handset by using button
  • additional foot-switches on both sides of underframe (optional)

Tilt-up armrest

The solid upholstered armrest makes it possible to achieve the most suitable and restful arm position for any physique.

It can adjusted in height and entry is facilitated by simply tilting it up.

The multilayered soft armrest cushion is completely sealed against liquids and ensures improved patient comfort.

Optionally the distance between armrests can be adjusted also by swivelling completely.

Brake system/castors

Diameter 7.5 cm twin wheel castor with total lock.

Locks the wheels (twin wheel) and swivel simultaneously for maximum stability when the equipment is stationary.

  • Twin wheel rotational motion in both directions (lockable)
  • Swivel motion in both directions (lockable)
  • Central operating brake with 4x diam. 7.5 cm twin wheel castors is optional

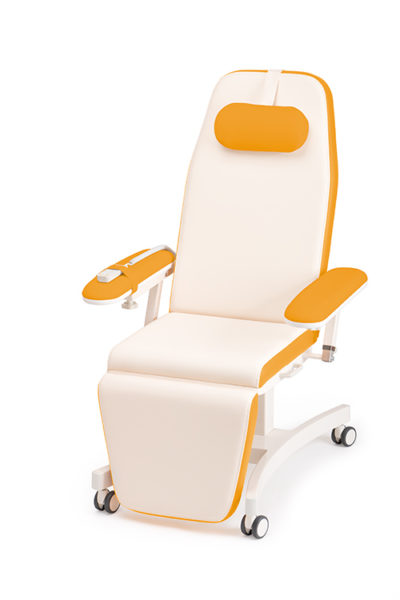

Standard colour combination3 Segments Upholstery

Exchangeable upholstery

Clean and modern design with dual colour for fresh look

It has been designed according to the latest developments in orthopaedics and ergonomics.

Can be removed easily with a few movements for cleaning or maintenance. Interchangeable with the previous upholstery types.

This new easy-to-clean upholstery covered by blood resistant artificial leather which is resistant to disinfectants, blood and urine too. The unified seat and legrest surfaces are more comfortable and easier to clean.

Instead of standard Chrom/Perle upholstery more than 50 alternative colours are available upon request.

Many other colour combinations available

Sample Upholstery Colours

* More than 50 colours are available upon request

Interested in our product?

Art-Nr.

EPN kit incl. multicontact pin with internal connecting cable HIGHLY RECOMMENDED FOR DIALYSIS 713E004
Trendelenburg foot-switches on both sides of underframe 713E005
Rechargeable battery back-up operation in case power failure (24V DC) 713E006
Reading lamp with LED light 713E008
USB charging unit for smart devices (5V, 1A) 713E009
Connecting leads (3 m) for potential equalization (EPN) 713E012
Rechargeable battery back-up operation with extended capacity (2,4Ah) 713E023
Comfort-T2 Multifunctional table 713M009
Flexible height adjustable armrest for universal medical applications (one pair) 713M010
Integrated gas spring in the arm support for smoother and safer operation (one pair) 713M011
Push bar 713M012
Universal holder for tablets and smartphones 713M013
Handle on both sides of the seat 713M014
Motorized height adjustment 713M017
Central operating brake with 4x diam. 7.5 cm twin wheel castors 713M020
4x diameter 10 cm swivel castors with total lock 713M021
Universal Push bar 713M027
Paper roll holder 713M033
Infusion bottle holder (IV pole) with height adjustment 713M038
Foldable side rail 713M064
Plastic side rail set 713M066
Central operating brake with 4x diameter 10 cm twin wheel castors 713M068
Individual logo on the upholstery 713U011
Headrest pillow square 713U012
DuoShape upholstery in individual colour combination (40 diff. colours) TUNDRA 713U026
Transparent protecting plastic cover for short legrest (3 segments upholstery) 713U029
3 segments upholstery in individual colour combination TUNDRA 713U040
